Activated Carbon for Used Motor Oil Re-Refining: PAC, GAC and Raw Material Selection Guide

Introduction: Why Does Used Motor Oil Require Activated Carbon Polishing?

Used motor oil is far more complex than standard industrial wastewater. Under extreme thermal stress during engine operation, lubricating oil breaks down, accumulating a complex mixture of oxidized hydrocarbons, resins, carbon residues, metal particles, degraded additives, and polar compounds. These contaminants ruin the color, stability, and commercial value of the recovered base oil.

Modern re-refining processes typically include primary treatments such as distillation, solvent extraction, centrifugation, and fine mechanical filtration. While these methods remove the bulk of heavy solids and volatile fractions, they often fail to eliminate residual polar organic compounds and dark color bodies completely.

This is where activated carbon serves as the critical “final polishing step” in the purification chain.
In waste oil re-refining plants, activated carbon is usually introduced after major contaminants have been removed by distillation, dehydration, or mechanical separation. At this stage, the goal is not to completely clean the oil, but to improve base oil quality by removing residual color bodies, oxidation products, and trace organic impurities that affect the final product’s performance.

How Does Activated Carbon Restore Base Oil Quality?

Activated carbon purifies spent motor oil through physical and chemical adsorption, relying on its extensive internal pore network to capture specific impurities.

• Color Removal (Decolorization): The dark tint in re-refined oil stems from polymerized hydrocarbons and degraded additives. Activated carbon traps these large, complex color bodies, shifting the oil from a dark brown or black to a clear, marketable amber color.
• Eliminating Polar Compounds: Oxidation creates organic acids and other polar molecules. Activated carbon neutralizes these compounds, significantly improving the oxidation stability of the finished base oil.
• Odor Control: Sulfur compounds and volatile organic fractions cause the distinct, unpleasant smell of used oil. The carbon matrix effectively adsorbs these volatiles during the final polishing stage.

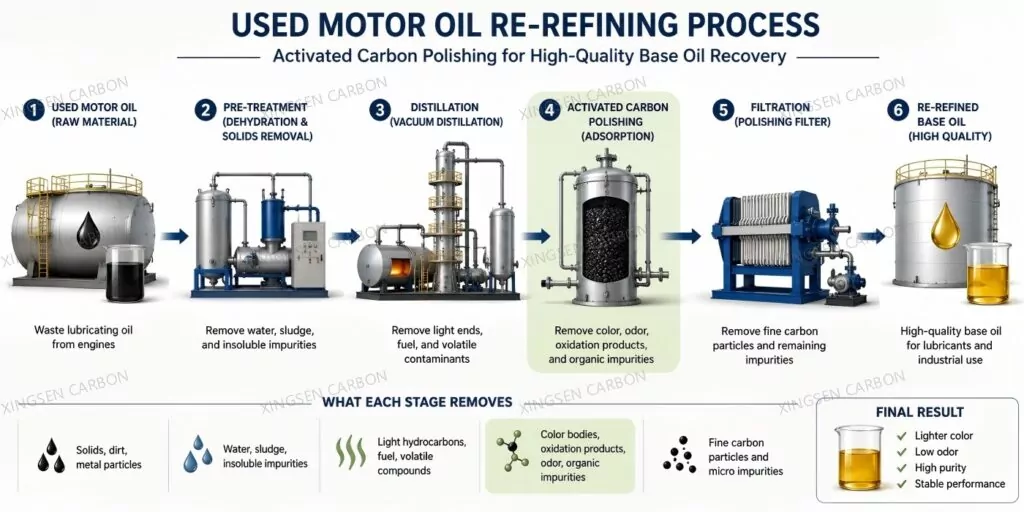

Process Position Note: Where does Activated Carbon fit in the refinery?

Activated carbon is not a replacement for all refining technologies; rather, it acts as the finishing station.

• Filtration/Centrifugation: Removes solid particles and suspended contaminants. (Pre-treatment)
• Distillation: Removes volatile components and water. (Pre-treatment)
• Activated Carbon Treatment: Fine adsorption of organic impurities, decolorization, and deodorization. (Final treatment)
• Bleaching Clay (Acid-activated clay): Often used in tandem with or as an alternative to activated carbon, excelling at neutralizing mineral acids and removing heavy color bodies via chemisorption.
• Conclusion: In high-end base oil refining, advanced plants often use a blended formulation of both activated carbon and bleaching clay to achieve the highest purity levels.

Powdered (PAC) vs. Granular (GAC): A System Comparison

The layout of your re-refining plant dictates whether you should feed powdered carbon directly into a batch reactor or pump oil continuously through a fixed-bed carbon column.

Raw Material Selection: Wood, Coal, or Coconut Shell?

Not all activated carbons are manufactured equal. The raw material defines the internal pore diameters, which directly determines what the carbon can actually remove.

• Wood-Based (Highly Recommended for Decolorization): Chemically activated (phosphoric acid), it is rich in mesopores (2–50 nm). This is the absolute first choice for waste oil decolorization. The color-forming molecules in degraded motor oil are large and heavy; only the wide mesopores of wood carbon can trap them effectively.
• Coal-Based: Features a balanced structure (micro and mesopores) and high mechanical strength. Suitable for general polishing when a broad adsorption spectrum is needed.
• Coconut shell activated carbon is generally less suitable for heavy oil decolorization applications where large color molecules dominate. Highly microporous (< 2 nm). The pores are far too narrow for large oil molecules to enter, leading to superficial clogging and very low efficiency. It is better suited for removing trace small-molecule sulfur odors or VOCs.

Xingsen Expert Advice: For the vast majority of waste oil decolorization needs, we strongly recommend specialized Wood-based Powdered Activated Carbon (Wood PAC). When purchasing, please pay close attention to its Methylene Blue (MB) value rather than the iodine value.

Troubleshooting & Selection Checklist (Before You Order)

To get the most value out of your carbon procurement, evaluate these four practical system variables:

1. Target Impurities: If color fails standards, prioritize a high-MB value Wood PAC immediately. If color is clear but sulfur odor persists, shift to a highly microporous or modified catalytic carbon.
2. Filtration Compatibility: Ensure your filter press can handle the specific particle size of the PAC you purchase. High ash content in low-grade carbons can degrade filtration efficiency and leave trace solids in your final product.
3. Process Temperature: Adsorption in heavy oils requires optimal temperatures—usually between 60°C and 90°C—to lower viscosity and allow impurities to reach the carbon pores without degrading the oil itself.
4. Methylene Blue vs. Iodine Value: Do not rely solely on the Iodine value for oil refining. Methylene Blue measures mesopore capacity, which directly correlates with an oil carbon’s bleaching power. Always specify the Methylene Blue value.

Professional In-Depth: Oil Refining Activated Carbon FAQ

Q1: Can activated carbon remove heavy metals and wear particles from used oil?

A: No. Activated carbon primarily targets dissolved organic impurities and color bodies. Physical solid contaminants, wear metals, and free water must be removed upstream via centrifugation, distillation, or fine mechanical filtration.

Q2: Why does re-refined oil sometimes turn dark again after carbon treatment?

A: This usually happens due to overheating during the mixing phase or residual reactive radicals that trigger re-oxidation. Key Solution: Ensure proper contact time at a controlled temperature, followed by rapid filtration immediately after adsorption equilibrium to prevent secondary discoloration.

Q3: Why is wood carbon generally preferred over coconut shell carbon for oil decolorization?

A: The color-forming molecules in degraded motor oil are large and heavy; they simply cannot fit into the tight micropores of coconut shell carbon, whereas they are easily trapped by the wide mesopores of wood carbon.

Q4: What is the difference between activated carbon and bleaching clay in oil recycling?

A: Bleaching clay (bentonite/acid-activated clay) excels at neutralizing mineral acids and removing heavy color bodies through chemisorption. Activated carbon offers a much wider adsorption spectrum, making it far better at removing stubborn odors, trace additives, and complex polycyclic aromatic hydrocarbons (PAHs). Many advanced refineries use a blended formulation of both media.

Q5: How do I prevent powdered carbon from passing through my filter cloth?

A: You must match the particle size distribution of the PAC (e.g., 200 or 325 mesh) with the micron rating of your filter media. Recommended Technique: Using a small amount of diatomaceous earth (DE) as a pre-coat on your filter press helps trap fine carbon particles and ensures crystal-clear base oil.

Q6: Does the pH value of activated carbon matter for oil treatment?

A: Yes. For base oil purification, a neutral or slightly acidic carbon is ideal. Heavily alkaline carbons can react with certain remaining oil additives or organic acids, causing unwanted emulsification or soapy side reactions.

Q7: Can oil-saturated activated carbon be regenerated?

A: Thermal regeneration is technically possible but rarely economical for individual oil recycling plants due to the high boiling point of residual base oils. Most facilities handle spent oil carbon through regulated disposal or blend it into solid fuel mixes for cement kilns.

Q8: How much activated carbon is typically required per batch of used oil?

A: Depending on the quality of the incoming feedstock and the target color index, dosage rates typically range from 1% to 5% by weight. We strongly recommend running a laboratory beaker test first to find the exact minimum dosage for your specific batch.

Q9: How does moisture in the used oil affect carbon performance?

A: Excessive moisture blocks the carbon pores and creates a barrier between the hydrophobic oil molecules and the carbon surface. Oil should be thoroughly dehydrated via flash distillation before it comes into contact with the activated carbon.

Q10: Which technical parameters should I specify when requesting a quote for oil carbon?

A: You should clearly specify: the raw material (preferably wood-based), particle size distribution (mesh size), moisture content, ash content, and most importantly, the Methylene Blue adsorption value.
